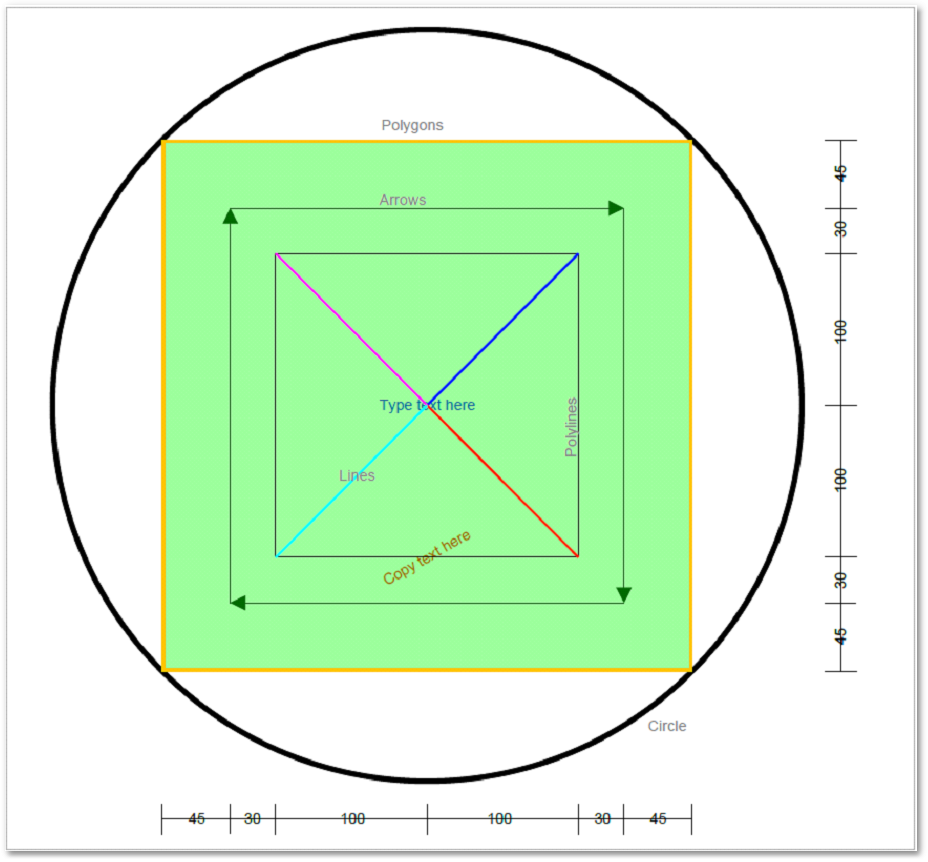

In this CAD exercise we will draw a rather complex drawing based on the following general guidelines:
•Create new layers
•Draw different CAD entities on separate layers (with the aid of construction lines where applicable)
•Manipulate these CAD entities.
•Change properties of entities
•Save drawing
An overview of the detailed steps to create the above drawing will follow.
