Define Named View

View > Define Named View (select from Main Menu)

File > Print > Define Named View (select from Main Menu)

Define a new named view.

This function (accessible from either the View or File main menu item) defines a new named view in model space. The user draws a rectangle in model space, and then specifies the name of the view.

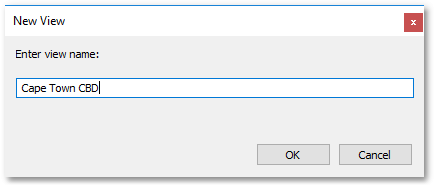

ALB_UsersManual_NewViewBox

Named views can be used to load a certain view into a viewport object in paper space, by right-clicking on the viewport and then select Load Named View:

ALB_UsersManual_ViewPortLoadNamedViewMenu

The Pick View box will appear, where a pre-defined named view can be loaded into the viewport.

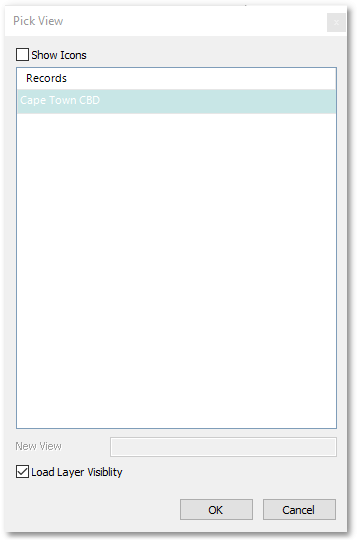

ALB_UsersManual_PickViewBox
