Changing model settings

<< Click to Display Table of Contents >>

Navigation:  Wadiso 6 Quick Start Guide > Wadiso 6 Quick Start Guide: step-by-step >

Changing model settings

First, we have an introduction on how to change a few global settings. From the main menu, navigate to Model Data > Model Settings, and select the tab labelled General on the form that appears.



WAD_QSGuide_ModelSettingsBox_New



Various settings can be edited on this form, and the above values are only an indication of what might be needed. For the purposes of this Quick Start exercise, only add a Job Name (e.g. “Quick Start Tutorial”).

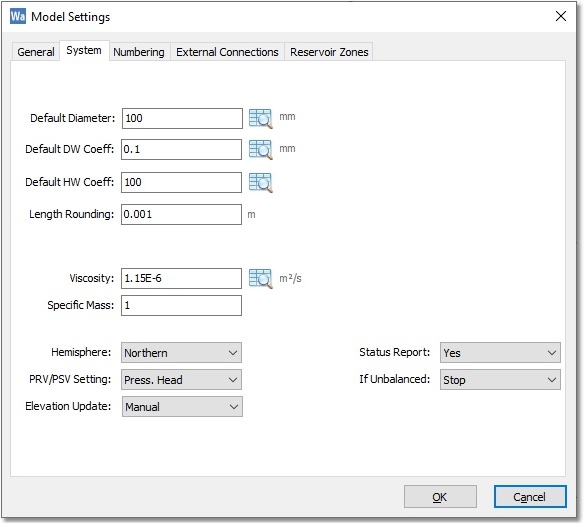

The second tab on the Model Settings form, labelled System, allows the user to assign default values to specific hydraulic properties. Ensure the following settings:



Default Diameter = 100

Default HW Coeff = 100



Note: The screen-shot below was taken on a computer where the regional settings define a point as a decimal separator. If your computer shows commas, leave them as is, and do not change them to points.



WAD_QSGuide_ModelSettingsSystemBox_New



Then, click on the OK button to close the form.

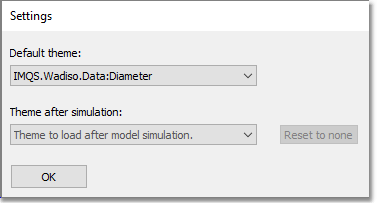

Wadiso is installed with a series of themes that the user can select, in order to view the model. (Advanced users can add to or edit these themes). Navigate to File > Theme Settings > Default Theme Settings, in order to reveal the following settings:



WAD_QSGuide_ThemeSettingsBox



For now, we are not going to change the defaults, but it would also be sensible to set the Theme after simulation to IMQS.Wadiso.Analysis:Demand Head. Click on the OK button to close this window.
