Viewing node results in a table

We will now access the node result table by clicking on the Node Table icon, near the Balance model icon in the top icon toolbar, as indicated below:



WAD_QSGuide_NodeResTabButton_New

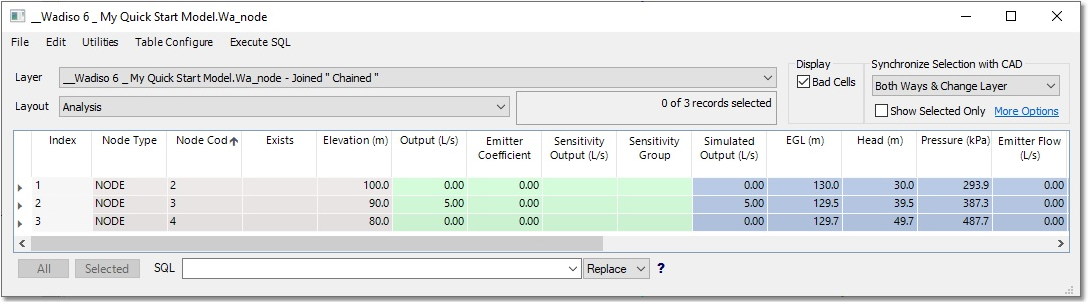

This will open the Node table in a new window. In the Layout drop-down list, select Analysis as shown below.



WAD_QSGuide_NodeResTable_New



Because of the 5.0 L/s output at Node 3, there is flow and headloss in the pipes, resulting in an EGL (m) (total energy head) at Node 3 of 129.5 m, i.e. 0.5 m lower than the Tank 1 water level. Given the Node 3 Elevation (m) of 90.0 m, this means that the Head (m) at Node 3 is 39.5 m.
