Modify > Boundary (Convex Hull) (select from Main Menu)
Create a boundary polygon (Convex Hull) around selected objects.

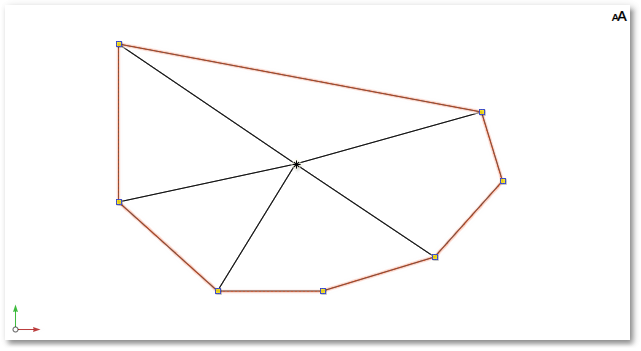

This function creates a boundary polygon (Convex Hull) around selected polygon objects that are adjacent to each other. The vertices and outline of an output Convex Hull polygon (that covers the whole area), are shown below:
