Split Selected Links

<< Click to Display Table of Contents >>

Navigation:  Wadiso 6 User Guide > Model input and display of results in the Albion environment > Build Model Topology >

Split Selected Links

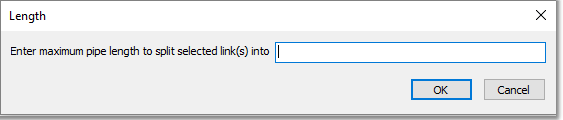

The Model Data > Model Topology > Split Selected Links > Segments based on maximum distance function splits all selected links in the model into shorter links with maximum specified length that can be set in the following ensuing dialog box:

WAD_UserGuide_SplitPipeLengthBox



The Model Data > Model Topology > Split Selected Links > Fixed number of segments function splits all selected links in the model into the number of links set in the following ensuing dialog box:

WAD_UserGuide_SplitPipeSegmentsBox
